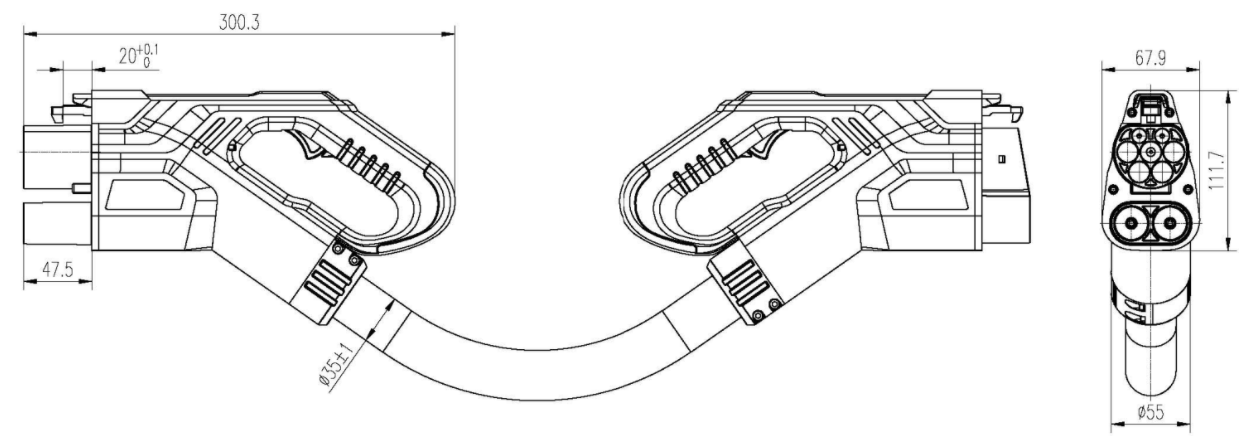

Detailed dimensions
Features |
1.Comply with IEC 62196-3: 2014 standards |
2. Nice appearance,hand-held ergonomic design,easy plug |
|
Mechanical properties |
1. Mechanical life : no-load plug in/pull out>10000 times |
|
Electrical Performance |
1. Rated current:150A |
2. Operation voltage: 1000V DC |
3. Insulation resistance:>5MΩ(DC500V) |
4. Terminal temperature rise:<50K |
5.Withstand Voltage:2000V AC/1min |
6. Contact Resistance: 0.5mΩ Max |
|
Applied Materials |
1. Case Material: Thermoplastic |
2. Terminal:Copper alloy,silver plated surface |
3.Inner core: Thermoplastic |
3.Excellent protection performance, protection grade IP54(working condition) |
|
Environmental performance |
1. Operating temperature: -30°C~+50°C |
|
Model selection and the standard wiring
Model |
Rated current |
Cable specification |
35125 |
150A |
1AWG*2C+6AWG*1C+20AWG*6C |
