150A CCS Combo 2 to Combo 1 Adapter DC Fast Charger CCS 2 to CCS 1 Adaptor

Short Description:

Item: CCS 2 to CCS 1 EV Adapter
CCS Combo 2 Plug to Converter to CCS Combo 1 Plug
If your electric vehicle has the European standard CCS Combo 2 inlet for DC fast charging, and you wish to use DC fast chargers in the US, Korea, or Taiwan, then this adapter is for you! This durable adapter lets your CCS Combo 2 vehicle charge at full speed at all CCS Combo 1 quick charger stations. 200A CCS Combo 2 to Combo 1 Adapter

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us

Product Detail

Product Tags

150A CCS Combo 2 to Combo 1 Adapter DC Fast Charger CCS 2 to CCS 1 Adapter

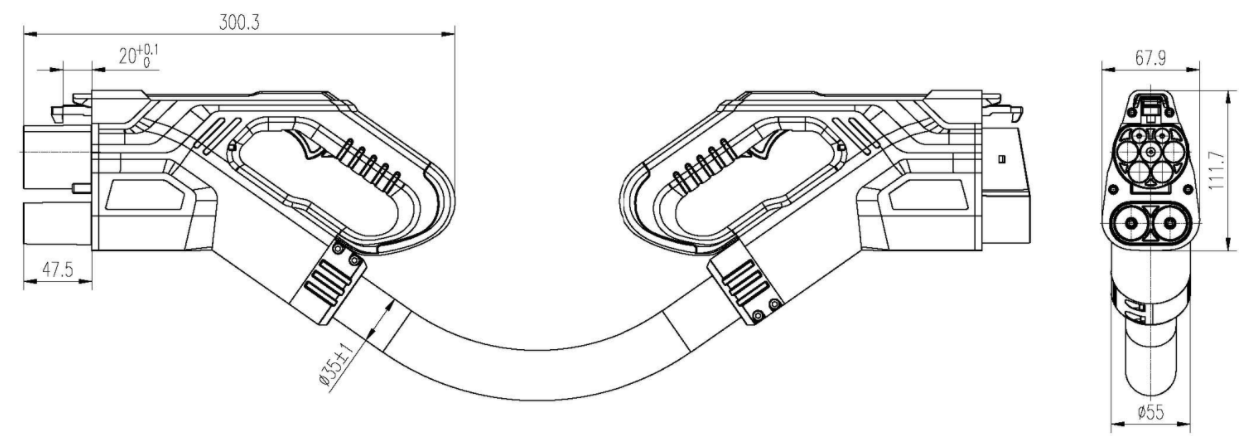

Detailed dimensions

Features

1.Comply with IEC 62196-3: 2014 standards

2. Nice appearance，hand-held ergonomic design，easy plug

Mechanical properties

1. Mechanical life : no-load plug in/pull out＞10000 times

Electrical Performance

1. Rated current：150A

2. Operation voltage： 1000V DC

3. Insulation resistance：＞5MΩ（DC500V）

4. Terminal temperature rise：＜50K

5.Withstand Voltage：2000V AC/1min

6. Contact Resistance： 0.5mΩ Max

Applied Materials

1. Case Material: Thermoplastic

2. Terminal：Copper alloy,silver plated surface

3.Inner core: Thermoplastic

3.Excellent protection performance, protection grade IP54(working condition)

Environmental performance

1. Operating temperature: -30°C~+50°C

CCS1 to CCS2 Fast Charge Adapter – charge USA made EV’s in Europe
With this adapter, you can connect Combo 1 (Type 1 CCS-Female) electric cars to Combo 2 (Type 2 CCS-Male) fast-charging station.
Almost all of the fast-charging stations in the EU use three types of plugs: DC cHadeMO; AC Type 2 and DC Combined Charging System (CCS2). In order to charge an EV that has a CCS socket Combo 1 from fast-charging station Combo 2, you need to use this adapter, which allows connecting CCS 1 EV to CCS 2 Station.

How to use Fast Charge :
1.Plug in the Combo 2 end of the adapter to the charging cable

2.Plug in the Combo 1 end of the adapter to your EV’s charging socket

3.After the adapter has clicked – it is ready for the charge

After you you are done with the charging session, disconnect the vehicle side first and later the charging station side.
