500A 400A CCS 1 EV Connector Liquid Cooling 500A Charging Gun Cooling System for DC Fast Charging Station

Short Description:

Model: MIDA-CCS1-EV500P

1. Rated Current:500A
2. OperationVoltage: DC 1000V
3. Insulation Resistance: >1000MΩ(DC500V)
4. DC Max Charging Power: 127.5KW
5. Withstand Voltage:3200V
ccs j1772 Plug Fast EV Charger
ccs combo 1 j1772 DC 500A liquid cooled
500A ccs combo1  liquid cooled Charging


Product Detail

Product Tags

400A 500A CCS 1 EV Connector Liquid Cooled Charging Gun Cooling System for DC Fast Charging Station

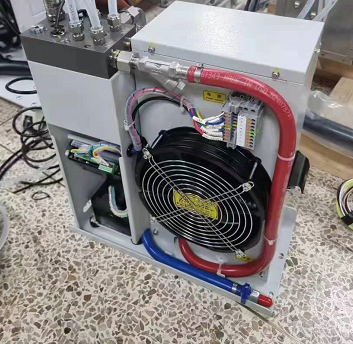

Cooling system

Rated voltage 1000V Max. Cable bending radius ≤300mm
Voltage Current 500A Max.(continue) Max.Cable length 6m Max.
Power 500KW Max. Cable weight 1.5kg/m
Withstanding voltage: 3500V AC /1min Operating altitude ≤2000m


Insulation resistance

Normal condiction ≥

2000MΩ

Plastic part material Thermoplastic
Meet the requirements of Chapter 21 of IEC 62196-1 under damp

and hot conditions

Contact material Copper
Contact Plating Silver plating
Temperature sensor PT1000 Cooling device size 415mm*494mm*200mm(W*H*L)
Conductive operating

temperature

90℃ Cooling device rated

votage

24V DC
Protection(connector) IP55/ Cooling device rated

current

12A
Protection(Cooling device) Pump&Fan:IP54/Device no protection Cooling device rated power 288W
Insertion/withdrawal force ≦100N Cooling device noise ≤58dB
Insertion/withdrawal

cycles:

10000次(None load) Cooling device weight 20kg
Operating temperature -30℃~50℃ Coolant Silicon oil
Use place and environment
It is suitable for DC charging of electric vehicles in charging stations, and is only used for IEC
62196-3 standard(
configuration EE).
It is suitable for use at an ambient temperature of -30 ℃-+ 50 ℃, and there is no corrosive gas
such as acid and alkali in the surrounding environment to avoid affecting the performance of the
product.
Try to avoid using it directly after soaking in water.
