TH40F10030C7 is a high-efficiency, high-power-density DC charging module developed by Tonhe Technology for EV DC chargers. It can output up to 1000V, and provides a constant power of 40kW within the ranges of 300-500VDC and 600-1000VDC. The interface and size of this module are the same as our 30kW model, making it convenient for users to upgrade and iterate. The module adopts intelligent air cooling and heat dissipation mode, and supports normal mode and silent mode. The charging module CAN realize the parameter setting of the charging module and control the working state of the charging module through CAN bus and main monitoring communication.
- wide input voltage range (AC)：270~490Vac
- super wide range of output voltage regulation (DC)：50~1000Vdc
- wide constant power range：300-500&600-1000Vdc
- high efficiency: a peak≥96%
- high power factor: a third more than 0.99 or higher
- low harmonic content：More than half load≤5%
- low standby power consumption：＜10W
- wide working temperature range:：-30~+75℃
- digital flow technology: Parallel machine uneven mobility＜±5%
- built-in discharge circuit: shutdown automatically discharge residual charge, simplify system design and improved reliability

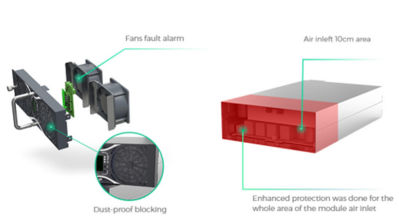

- smart fan control: monitoring device temperature within a ring temperature, output voltage and current, and intelligent control of motor speed
- fast plug installation: can support hot plug function
- perfect protection function：
ü input, under-voltage protection, over-current protection, open phase protection
ü output over voltage protection, current limiting protection
ü output flow backward
ü environment temperature detection and protection
