DCDC Bidirectional Charging Module

Short Description:

Dimensions:85mm(H)×226mm(W)×376mm(D)

Weight:≤9.5kg

Efficiency(full load):>98.5%

Cooling Mode: Forced air cooling

Communication Bus Protocol: CAN bus

No. of Parallel Modules: ≤60 pcs

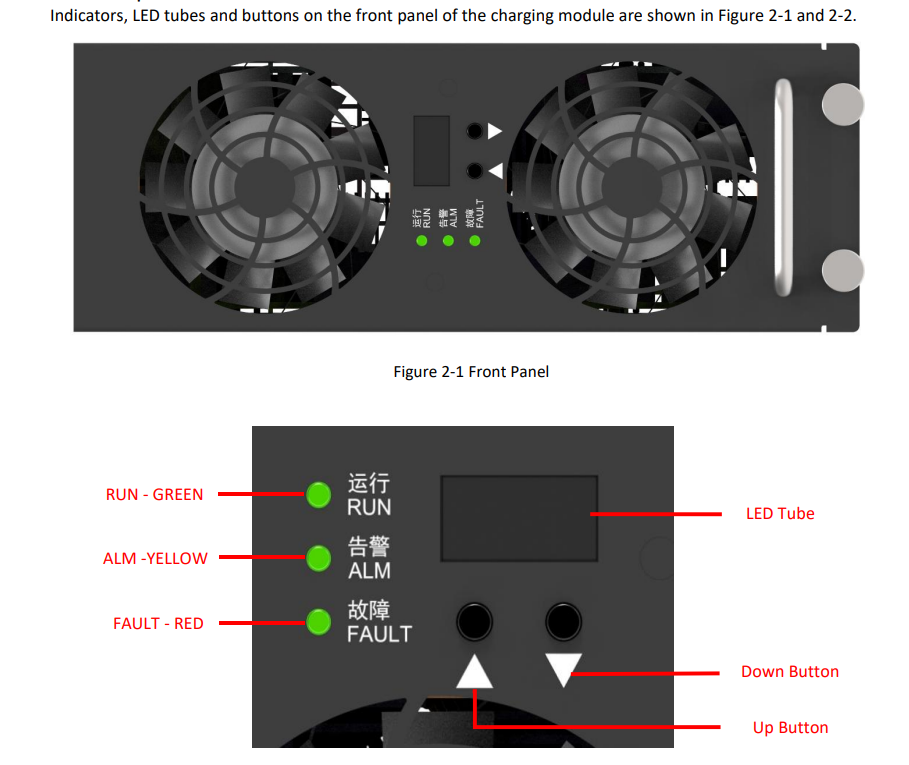

Indicator:Green: normal operation Yellow: protection alarm Red: fault


Product Detail

Product Tags

DCDC Bidirectional Module DC Charging Module

MD95050Bis a high-frequency isolated bi-directional Dc-Dc module with core advantageousperformance such as ultra-wide voltage range, ultra-high full-load operating temperature and ultra-highefficiency.The strong protection and high power density are also the main features of the moduleMD95050B can be widely used in interaction between Dc bus side and battery side, such as energy storage,PV, ESS and charging, battery cascade utilization, data center and other multi-energy complementaryscenarios.

Safety precautions and operation requirements3.1.1 Safety precautions
Please read and follow all the safety precautions mentioned in this manual during installation, operation, andmaintenance.
Personnel responsible for installation, debugging and maintenance of the equipment must be strictly trainedfamiliar with various safety precautions and master the correct operation methods before installation, operation andmaintenance.
In the process of installation, the installation operator shall immediately terminate the operation, report to therelevant person in charge, and take effective protective measures in the event of a situation that may causedamage to the person or the module.
It is forbidden to install and operate

It is forbidden to install and operate the module and cables in thunderstorms.
The tool used needs to be insulated, or use insulated tools.
In case of fire, leave the building or equipment area quickly, and press the fire alarm or report the fire.
