Duosida EV Adapter 150A CCS2 to CCS1 Adapter for DC Charger Station E V Car Charger

Short Description:

Item: CCS 2 to CCS 1 EV Adapter
CCS Combo 2 Plug to Converter to CCS Combo 1 Plug
If your electric vehicle has the European standard CCS Combo 2 inlet for DC fast charging, and you wish to use DC fast chargers in the US, Korea, or Taiwan, then this adapter is for you! This durable adapter lets your CCS Combo 2 vehicle charge at full speed at all CCS Combo 1 quick charger stations. 150A CCS2 to CCS1 Adapter, 150A CCS 2 to CCS 1 EV Adapter

Product Detail

Product Tags

Duosida EV Adapter 150A CCS2 to CCS1 Adapter for DC ChargerStation EV Car Charger

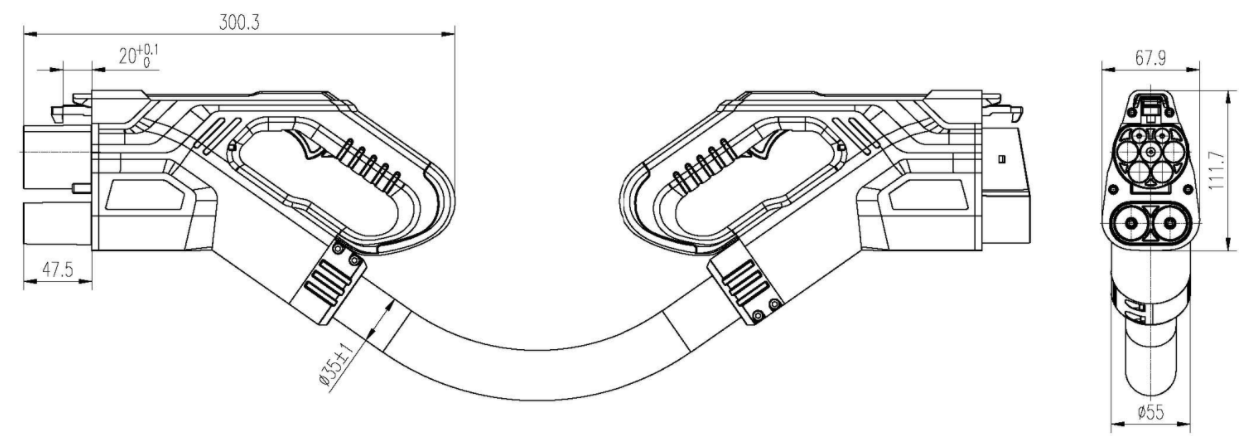

Detailed dimensions

Features
1.Comply with IEC 62196-3: 2014 standards
2. Nice appearance,hand-held ergonomic design,easy plug
Mechanical properties
1. Mechanical life : no-load plug in/pull out>10000 times
Electrical Performance
1. Rated current:150A
2. Operation voltage: 1000V DC
3. Insulation resistance:>5MΩ(DC500V)
4. Terminal temperature rise:<50K
5.Withstand Voltage:2000V AC/1min
6. Contact Resistance: 0.5mΩ Max
Applied Materials
1. Case Material: Thermoplastic
2. Terminal:Copper alloy,silver plated surface
3.Inner core: Thermoplastic
3.Excellent protection performance, protection grade IP54(working condition)
Environmental performance
1. Operating temperature: -30°C~+50°C

Model selection and the standard wiring

Model Rated current Cable specification
35125 150A 1AWG*2C+6AWG*1C+20AWG*6C

Fast charging adapter from CCS2 to CCS1
Fast charging adapter from CCS2 to CCS1 is ideal solution for vehicles from USA with fast charging function which have CCS1 (USA standard Combined Charging System) charging socket. Thanks to this adapter you will be able to use fast charging stations in Europe. Without this adapter you will not be able to charge your electric vehicle which has CCS1 charging socket!

Adapter from CCS2 to CCS1 lets you use fast charging in Europe without any changes in your vehicle construction.

Main characteristics:

Charging power up to 50kW
Max voltage 500V DC
Max charging current 125A
Operating temperatures -30ºC till +50ºC

CCS 1 to CCS 2 Fast Charge Adapter – charge USA made EV’s in Europe
With this adapter, you can connect Combo 1 (Type 1 CCS-Female) electric cars to Combo 2 (Type 2 CCS-Male) fast-charging station.
Almost all of the fast-charging stations in the EU use three types of plugs: DC cHadeMO; AC Type 2 and DC Combined Charging System (CCS2). In order to charge an EV that has a CCS socket Combo 1 from fast-charging station Combo 2, you need to use this adapter, which allows connecting CCS 1 EV to CCS 2 Station.

How to use Fast Charge :
1.Plug in the Combo 2 end of the adapter to the charging cable

2.Plug in the Combo 1 end of the adapter to your EV’s charging socket

3.After the adapter has clicked – it is ready for the charge

After you you are done with the charging session, disconnect the vehicle side first and later the charging station side.
