Liquid Cooling Module 40KW DC Charging Module

Short Description:

1.Output voltage Voltage : 150-1000V

2. Output current: 0~133.3A

3. Voltage stabilized accuracy:≤±0.5%

4. Current stabilized accuracy:≤±1%

5. Voltage ripple: ≤±1%

6. Startup time;≤1s

7. Efficiency:Highest efficiency>97%


Product Detail

Product Tags

Liquid Cooling Module 40KW DC Charging Module

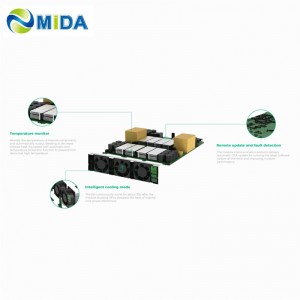

30kW 40kw 1000V Liquid Cooling ACDC Charger Power Module

KEY FEATURES:

Ultra-wide output voltage range

LED panel displaying voltage, current, group, protocol, address, manual/automatic mode and fault information

Supporting CAN bus communication and software grouping control

Coolant and circuit sepration design,supporting hot swapping, safe and reliable

IP65 protection level, suitable for various harsh environments

Industry leading liquid cooling technology solving noise problem permanenly

Maximum efficiency≥97% Built-in residual voltage discharge circuit

Standby power consumption≤10W

Supporting OTA remote upgrading
