Liquid Cooling Power Module 40kW DC Charging Module
40kW Liquid Cooling DC Charging Module

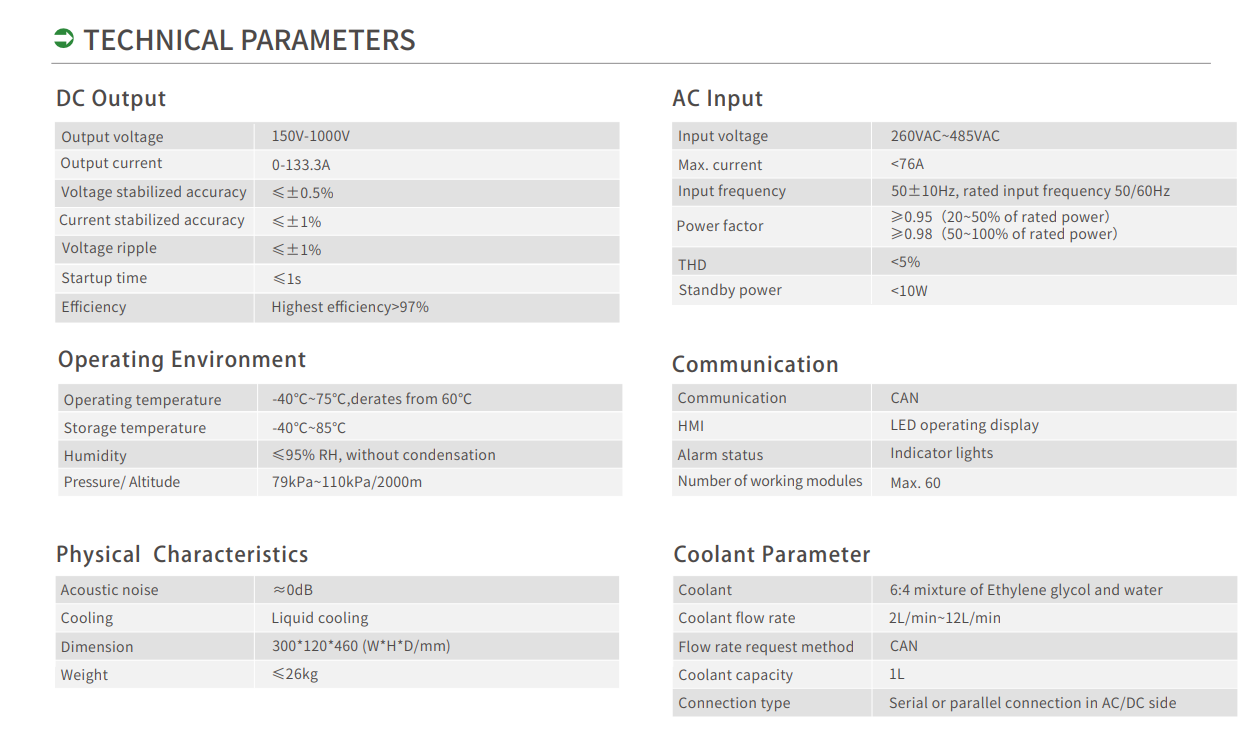

Ultra-wide output voltage range LED panel displaying voltage, current, group, protocol, address, manual/automatic mode and fault information Supporting CAN bus communication and software grouping control Coolant and circuit sepration design,supporting hot swapping, safe and reliable IP65 protection level, suitable for various harsh environments Industry leading liquid cooling technology solving noise problem permanenly Maximum efficiency≥97% Built-in residual voltage discharge circuit Standby power consumption≤10W Supporting OTA remote upgrading.
The UR100040-LQ liquid cooling charging module is designed and manufactured with the world’s leading power supply technology and manufacturing technique. The charging module has an ultra-wide voltage range with constant power output. It adopts liquid cooling heat dissipation technology, which greatly improves the heat dissipation efficiency. The liquid cooling charging module has the characteristics of high protection level, high stability, high safety, long service life, high power density, small space occupation, UR – and low operation noise. It has plug-and-pull liquid cooling port and battery back feed protection
