Liquid Cooling Unit for HPC CCS Charging Station Liquid Cooling EV Charging

Short Description:

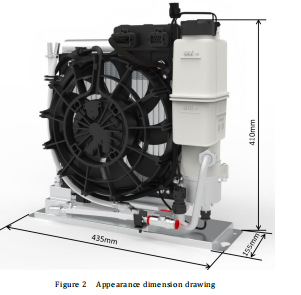

Dimension (Length ×Width×Height): 435×155×410mm

Working pressure: 0～0.7MPa

Cooling medium: Dimethyl silicone oil Di-tert-butyl-p-methylphenol

FUCHS BluEV TF 8016（-40~85℃）

Operating ambient temperature -40℃～50℃

Heat dissipation: 3000W@4L/min，700m3 /h

Weight: 7Kg

Send email to us

Product Detail

Product Tags

Liquid Cooling Unit for HPC CCS Charging Station Liquid Cooling EV Charging

1 Vehicle gauge products

The design and development, parts selection, experimental verification,

manufacturing process and quality control are all developed according to

IATF16949 system.

2 IP68 protect

Completely prevent dust from entering the internal core components.

After soaking in water no more than 1m deep, clean them and they can

work normally.

3 Miniaturization

Lightweight, integrated and small in size.

The functions of the controller include: collecting sensor information, collecting abnormal information, communicating with the charging pile controller, and adjusting the speed of the pump and fan.

1. Collect sensor information: collecting the temperature of Radiator Entrance.Collecting temperature and pressure of Radiator Exit, and the temperature of four PT1000 sensor at charging pile controller

2. Collect abnormal fault information: collecting information of fan fault, pump fault, temperature sensor fault, pressure sensor fault, high temperature fault, high pressure fault, low pressure fault, high liquid level fault, low liquid level fault.
