China Manufacture DC EV Adapter CHAdeMO to GBT for Electric Car
EV Adapter CHAdeMO to GBT Adapter for Electric Vehicles Charging
Chademo GBT Adpater
Rate Current:125A DC max
Rate Voltage:100-950V DC
IP Grade: IP54
Operating Temperature: -30°C to +50°C
Storage Temperature :-40°C to +85°C
Weight(kg/Pound): 3.6kg/7.92Ib
WARNINGS
•Read this document before using the CHAdeMO Adapter. Failure to follow any of the instructions or warnings in this document can result in fire, electrical shock, serious injury or death.
•The CHAdeMO Adapter is designed only for charging a gb/t vehicle (China charging standard car). Do not use it for any other purpose or with any other vehicle or object. The CHAdeMO Adapter is intended only for vehicles that do not require ventilation during charging.
•Do not use the CHAdeMO Adapter if it is defective, appears cracked, frayed, broken or otherwise damaged, or fails to operate.
•Do not attempt to open, disassemble, repair, tamper with, or modify the CHAdeMO Adapter. The adapter is not user serviceable. Contact the reseller for any repairs.
•Do not disconnect the CHAdeMO Adapter while charging the vehicle.
•Do not use the CHAdeMO Adapter when either you, the vehicle, the charging station, or the CHAdeMO Adapter is exposed to severe rain, snow, electrical storm or other inclement weather.
•When using or transporting the CHAdeMO Adapter, handle with care and do not subject it to strong force or impact or pull, twist, tangle, drag or step on the CHAdeMO Adapter to protect from damage to it or any components.
•Protect the CHAdeMO Adapter from moisture, water and foreign objects at all times. If any exist or appear to have damaged or corroded the CHAdeMO Adapter, do not use the CHAdeMO Adapter.
•Do not touch the CHAdeMO Adapter’s end terminals with sharp metallic objects, such as wire, tools or needles.
•If rain falls during charging, do not allow rainwater to run along the length of cable and wet the CHAdeMO Adapter or the vehicle’s charging port.
•If the CHAdeMO charging station’s charge cable is submerged in water or covered in snow, do not insert the CHAdeMO Adapter’s plug. If, in this situation, the CHAdeMO Adapter’s plug is already plugged in and needs to be unplugged, stop charging first, then unplug the CHAdeMO Adapter’s plug.
•Do not damage the CHAdeMO Adapter with sharp objects.
•Do not insert foreign objects into any part of the CHAdeMO Adapter.
•Ensure that the CHAdeMO charging station’s charge cable and the CHAdeMO Adapter do not obstruct pedestrians or other vehicles or objects.
•Use of the CHAdeMO Adapter may affect or impair the operation of any medical or implantable electronic devices, such as an implantable cardiac pacemaker or an implantable cardioverter defibrillator. Check with the electronic device manufacturer concerning the effects that charging may have on such electronic device before using the CHAdeMO to gb/t Adapter.
•Do not use cleaning solvents to clean the CHAdeMO to gb/t Adapter.
If you have any questions or concerns about your CHAdeMO to gb/t Adapter, contact the local reseller
SPECIFICATIONS

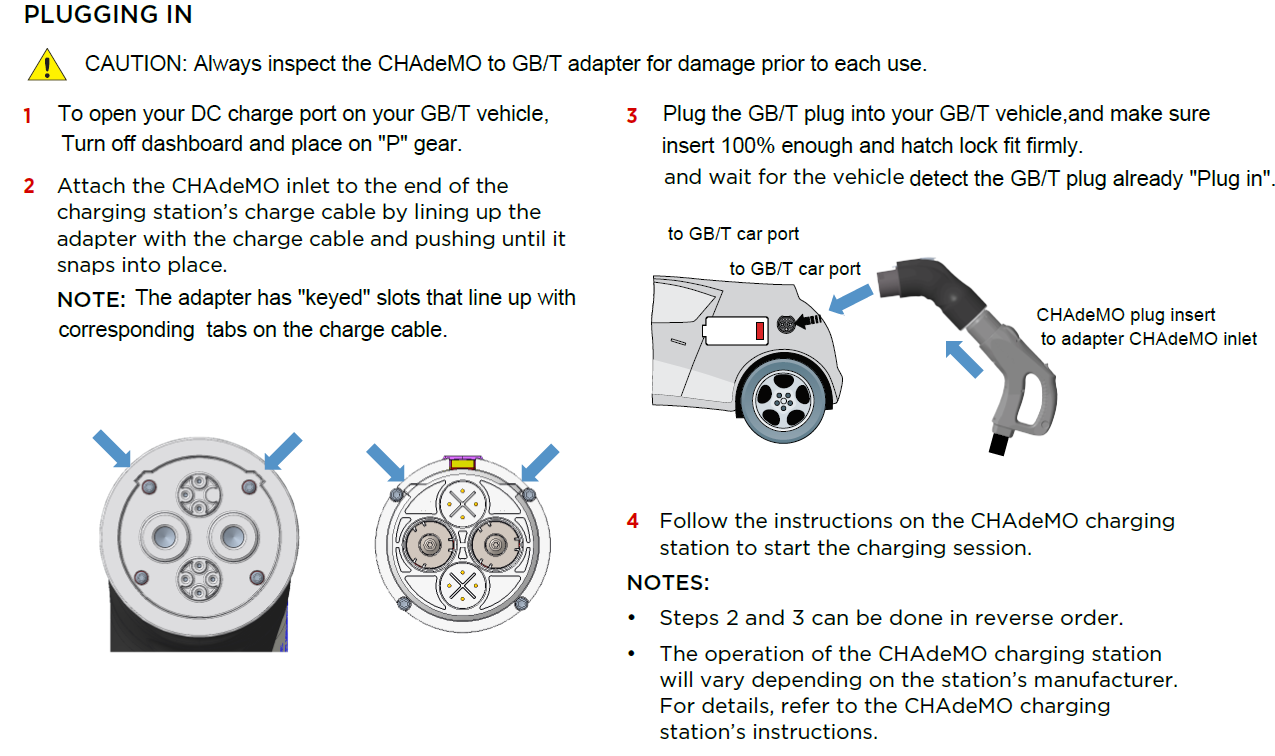

Use only to connect the charging cable on a CHAdeMO charging station to a GB/T vehicle that has been enabled for DC charging. The location of the charge port will vary depending on your vehicle
CHARGING TIME
Charging times vary based on the power and current available from the charging station, subject to various conditions. Charge time also depends on ambient temperature and the vehicle’s Battery temperature. If
model. Refer to your
GB/T vehicle’s owner
the Battery is not within the optimal temperature
documentation for the location of the charge port and
more detailed charging instructions.
range for charging, the vehicle will heat or cool the
Battery before charging begins.
For the most up-to-date information on how long it takes to charge your GB/T vehicle manufactuer website for more information.
*Full current may not be available when operating at extreme temperatures.
CAUTION: Do not operate or store the CHAdeMO adapter in temperatures outside the ranges listed above.
RESOLVING FAULTS
If your GB/T vehicle fails to charge when using the CHAdeMO adapter, check the display on your GB/T
1 Press the unlock hatch botton of the adapter,
pull the adapter out of the GB/T DC charge port,
CAUTION: If you unplug the charging station’s cable from the adapter
when the adapter is still plugged into the vehicle, make sure the adapter does not fall onto the vehicle and cause damage.
2 Push the charge port door closed.
3 Unplug the adapter from the charging
station and store it in an appropriate location.
STATUS LIGHT
Under normal conditions when the CHAdeMO adapter is receiving power from the charging station, its green LED lights up. During charging, the LED green on.
vehicle for information about any error that may have
occurred. Always check the status of the charging station.
Although the CHAdeMO adapter is designed to work with all CHAdeMO charging stations, it may be incompatible with some models.
Because continuous improvement is an ongoing goal
, and is necessary to ensure compatibility with

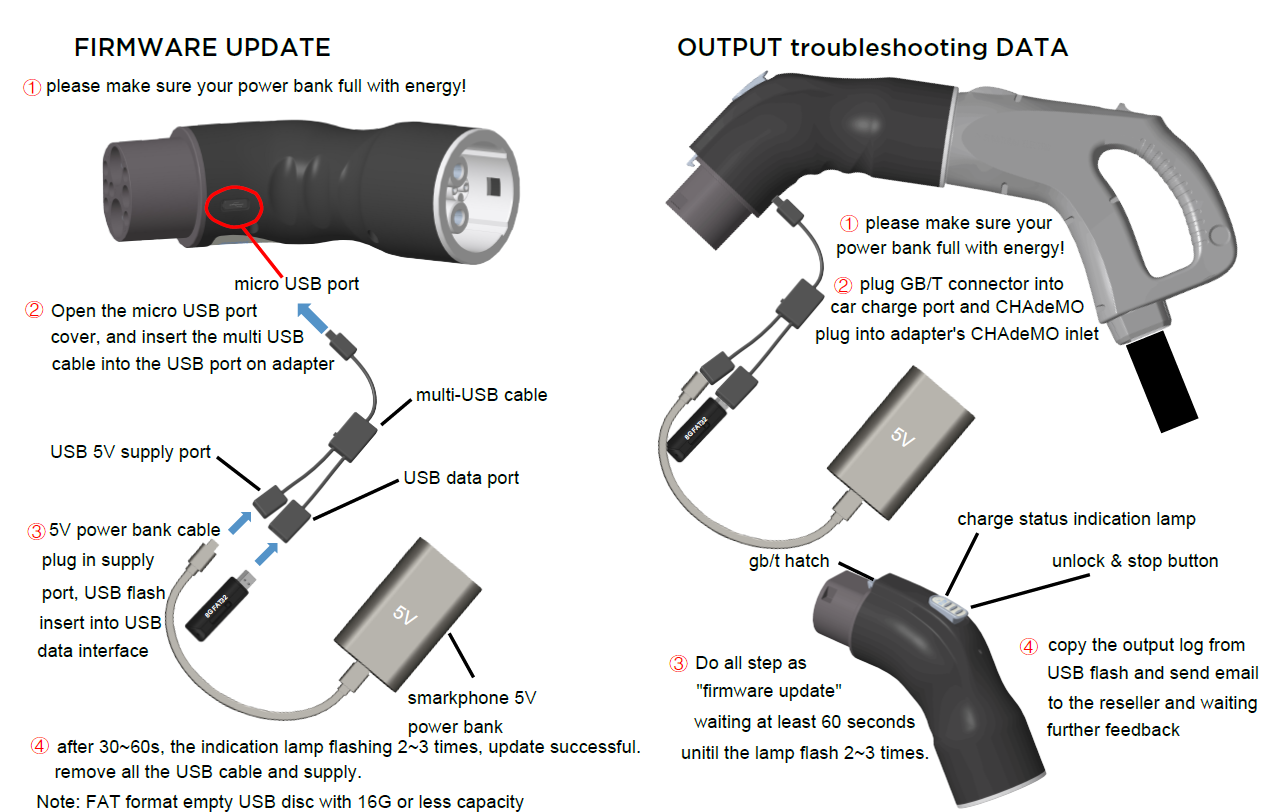

as many models of CHAdeMO stations as possible, both present and future, We reserves the right to make product modifications at any time. As a result, your adapter may require an occasional
firmware update. Firmware updates are performed by USB port.
