ETL FCC Energy star certificated Car Charging Station EV Charger Type 1 EV Charger Station 48A Wallbox charger electric vehicle chargers for home

Short Description:

Residential EV Charger – Smart Home:
1. 208-240VAC, 40A/48A;
2. With LED Indicator;
3. NEMA14-50P, 7.5m(25ft) output cable;
4. IOS&Google App
5. Wi-Fi & Bluetooth & Ethernet&RFID
6. ETL/FCC/Energy Star Version
7. 2 years limited product warranty.

Product Detail

Product Tags

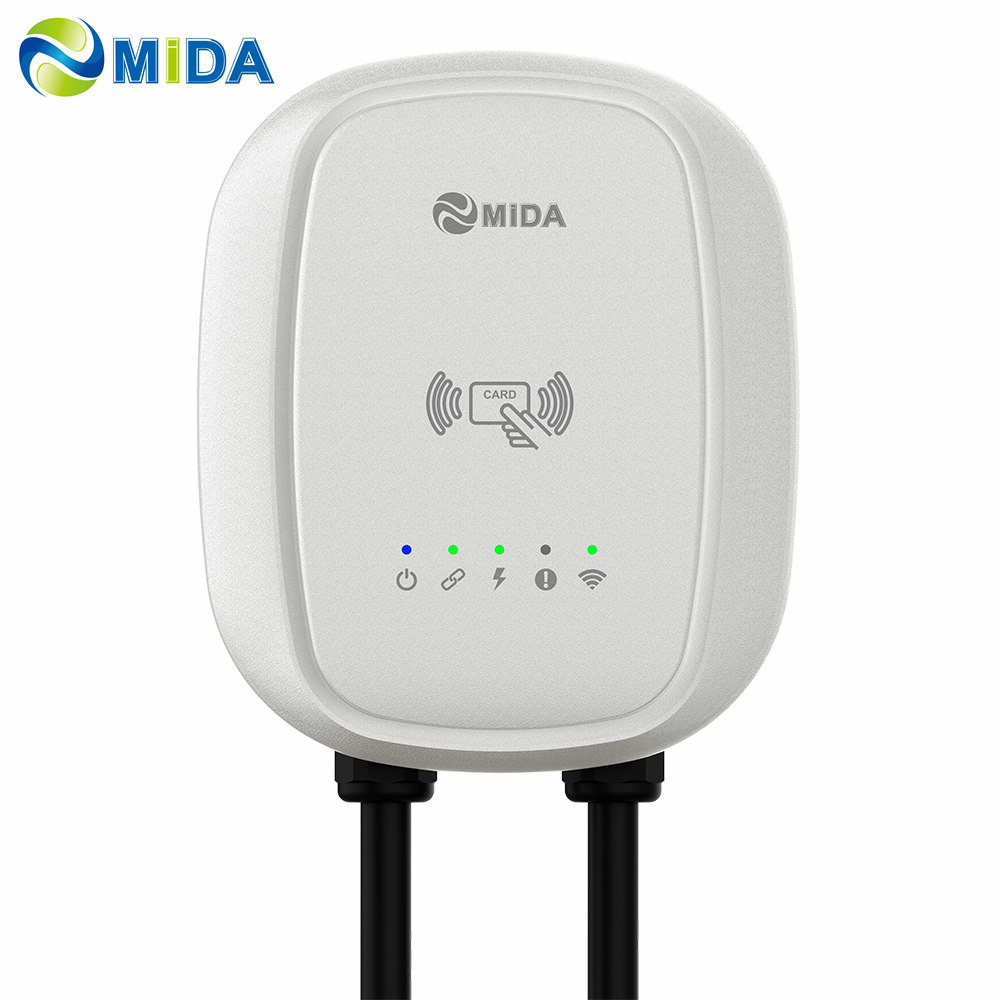

                     Residential EV Charger Type 1 EV Charger Station 48A Wallbox charger



With a charging power of 11 KW, this charger enables you to quickly charge your EV, significantly reducing the downtime between your journeys. Whether you are running errands or embarking on a long road trip, the 48A Type 1 EV Charger Station ensures that your vehicle is powered up and ready to go in no time.

40A 48A 美标



 NA Commercial EV Charger
Electrical Parameter 32A Max 40A Max 48A Max
Single phase input: nominal voltage 208-240 VAC 60 Hz
7.6 kW at 240 VAC 9.6 kW at 240 VAC 11.5kW at 240 VAC
Input Cord Hardwired by licensed electrician
Output Cable & Connector 18 FT/5.5 m cable (25 FT/7.5m optional)
Type 1 SAE J1772 standard compliance
Smart Grid Connectivity Built-in Wi-Fi ( Optional) (802.11 b/g/n/2.4GHz) / Bluetooth Connectivity
Firmware Over-the-air (OTA) upgradeable firmware
Environmental Parameter Dynamic LED lights show charging status: standby, Device connectivity, charging in progress, fault indicator, network connectivity
NEMA Enclosure Type4: Weatherproof, dust-tight
IK10: Resistant polycarbonate case
Quick-release wall mounting bracket included
Operating Temperature: -22°F to 122°F (-30°C to 50°C )
Dimension Main enclosure:12.3in x 10.2in x 4.1in (313mm x 260mm x 05mm)
Codes & Standards NEC625 compliance, UL2594 compliance, OCPP 1.6J, FCC Part 15 Class B, Energy Star
Safety ETL Listed
RFID Optional
4G Module Optional
Warranty 2 years limited product warranty



Installation and usability are also paramount in the design of the 48A Type 1 EV Charger Station. With its wallbox charger configuration, this charger can be easily mounted on any wall, ensuring a space-saving and clutter-free setup. The user-friendly interface and clear instructions make the installation process hassle-free, allowing both professionals and do-it-yourself enthusiasts to install it with ease.
