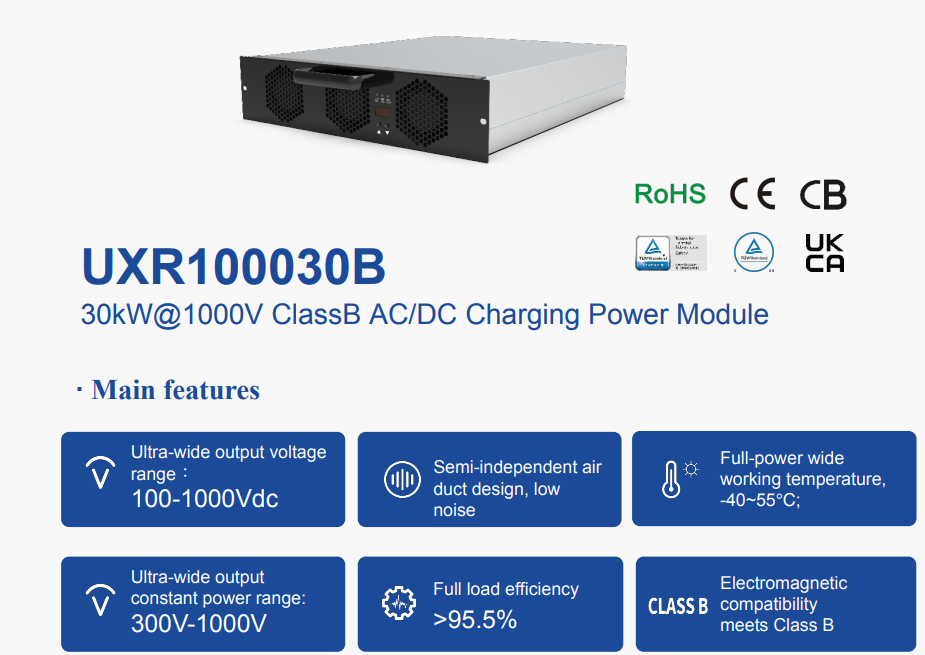

UXR100030B 30kW 1000V ClassB AC/DC Charging Power Module
UXR100030B 30kW 1000V ClassB AC/DC Charging Power Module

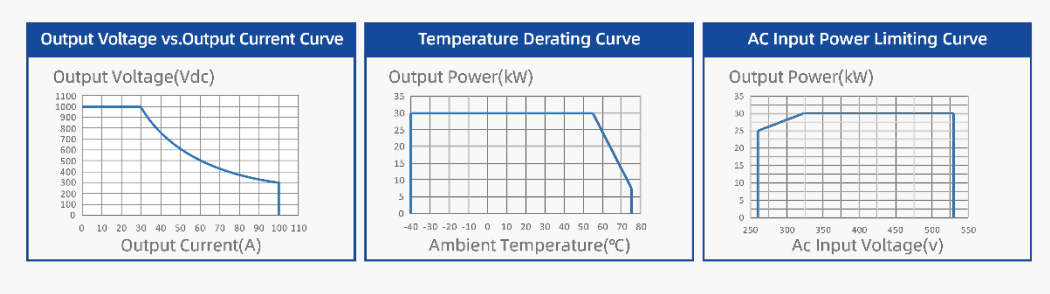

Output Voltage vs. Output Current Curve
Temperature Derating Curve
AC input Power Limiting Curve
Ultra high efficiency: the highest efficiency> 96%, rated efficiency> 95%；
Ultra wide output voltage range: 150VDC ~ 1000VDC；
Ultra small output ripple voltage: peak-to-peak ripple ≤ 2V；
Ultra small standby power consumption: standby power ≤ 10W；
Complete protection and alarm functions: input over/under voltage, output over voltage, over current, Over temperature protection, output under voltage alarm, output short circuit protection；
LED can display output voltage, output current, group address, protocol, module address, manual or automatic, fault information；
Support CAN, 485 bus communication, power modules can be grouped by controller；
Adopt DSP digital control and support voltage and current adjustment function；
Battery current reverse protection circuit inside, support hot swap；
